| JS.107003 Siral steel belt protective sleeve |
Release date:2016/4/22 15:26:42 |
| Browse:1876
times |
| Product list:Protective cover series products
|
| Order hotline:15930385188 / 13833801759 |
 |
|
|
|
| Describe |

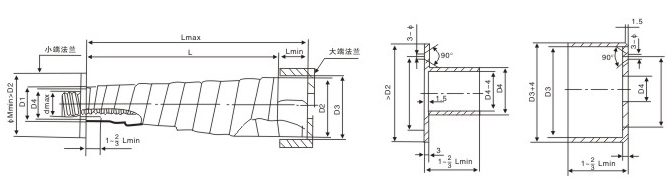

D1-shield's small end inside Diameter=dmaz+10mm
D2-shield's large end inside diameter
D3-Iargeflangl inside diameter=D2+6~8mm
D4-small fiange outside diameter=D1-1~2mm
dmax-Max,diameter of the parts tobe shieeded
Lmin-Min,compression length
Lmax-Max extension length
L-allowable max.travel raugl
|
|
|
| |
 |
|
|
|
